Rip Rap Shoreline Erosion Control Fabric
Rip Rap Erosion Control Fabric
Rip Rap Erosion Control Fabric
Rip Rap Erosion Control Fabric

Rip Rap Erosion Control Fabric

$508.79


FREE SHIPPING

For applications which require a dimensionally stable, thick geotextile, our non-woven erosion control fabric is an ideal choice. These fabrics are designed to withstand rugged jobsites and are perfectly suited to providing separation layer between rip rap and the ground below. These needle-punched fabrics are non-biodegradable, tear resistant and allow for a high water flow. These fabrics are commonly used in shoreline or hillside applications as a separation layer under rip-rap or other large diameter and sharp aggregate. Our rip rap erosion control fabric is available in weights ranging from 8oz to 16 oz and in both 12.5' and 15' roll widths.

Product Specifics

  • Series: Rip Rap Erosion Control - Ultra Heavy Duty
  • Square Feet / Roll: 4,500

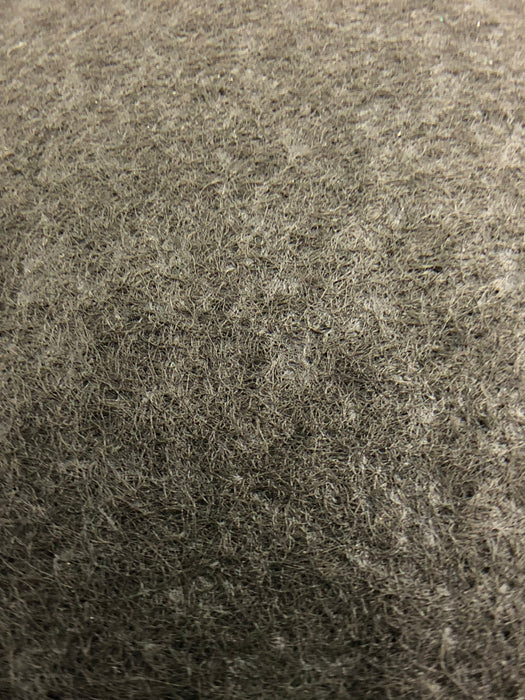

Non-Woven Shoreline Fabric

  • Contractor Grade
  • UV Resistant
  • Non-Biodegradable
  • Will Not Rot or Mildew
  • Resistant to Rodent and Insect Damage

All of our geotextile fabrics are professional-grade and are designed for use in both residential & commercial applications. Our fabrics are designed for years of continuous use in the designated application.

Do These Fabrics Drain Water?

Most drainage fabrics on the market claim to be permeable with a high water flow rate. Specification sheets show flow rate but it can be difficult to translate the testing numbers into a real world example.

View the video to the right for a demonstration of this fabric passing water.

Shipping

  • All Fabric Ships for Free (standard ground, see map)
  • Expedited shipping only available on orders over $4,000
         Call: (800) 520-7731 for pricing and ship times

Shipping estimates shown on the map pertain to this specific product only. Fabric orders typically ship same day if the order is placed before 12:00 noon CST. Transit times displayed in the map are listed in business days, and are approximate. The day that the order is shipped is not counted as a transit day.

Accessories:

6
6
6

6" Landscape Staples

$152.04
8
8

8" Landscape Staples

$248.50

FABRIC SPECIFICATIONS

 8oz Download Specification Sheet
10oz Download Specification Sheet
12oz Download Specification Sheet
16oz Download Specification Sheet

To the best of our knowledge, the information contained herein is accurate. However, Pro Fabric Supply cannot anticipate all conditions under which the above product information and the products which we distribute or the products of other distributors or manufacturers in combination with the products which we offer, may be used. We accept no responsibility for results obtained by the application of this information or the safety or suitability of the products we distribute either alone or in combination with other products. Final determination of the suitability of any information or material for the used contemplated, or its manner of use, and whether the suggested use infringes any patents is the sole responsibility of the user. Please note: Pro Fabric Supply is a distributor of geotextile fabric, not the manufacturer. We source material from a number of different United States based geotextile manufacturers.

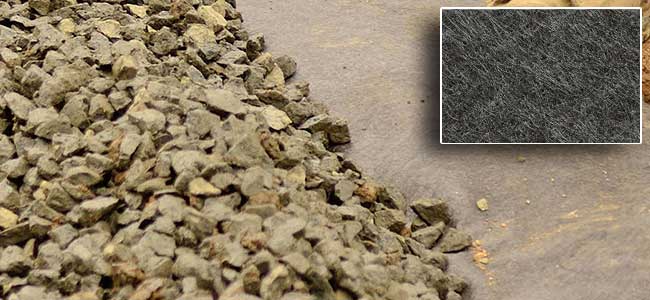

Thicker Geotextile Fabric Used Under Rip Rap

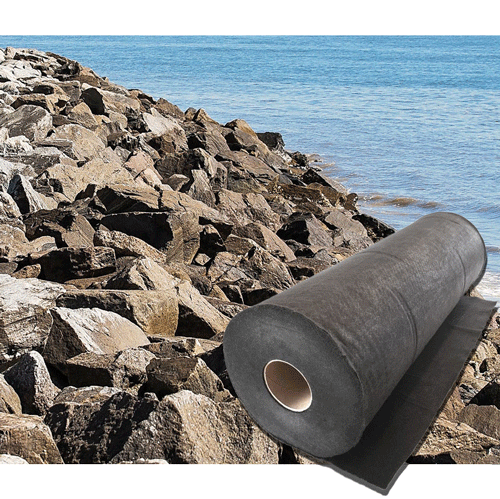

Rip Rap Along Lake Side

Riprap For The Prevention of Erosion

There are a number of products on the market to protect, stabilize, and prevent erosion in high-concentrated areas of flow.

Riprap is rock or other material used to protect, stabilize, and shield soil surfaces against erosion in areas of concentrated flow. It's typically placed over geotextile along graded ditches, channels, and shoreline banks.  It's also used with a combination of rock sizes to construct retention berms for sediment traps and temporarily constructed dams (referred to as check dams) to protect high-velocity culvert inlets.

The Intention & Function of Riprap

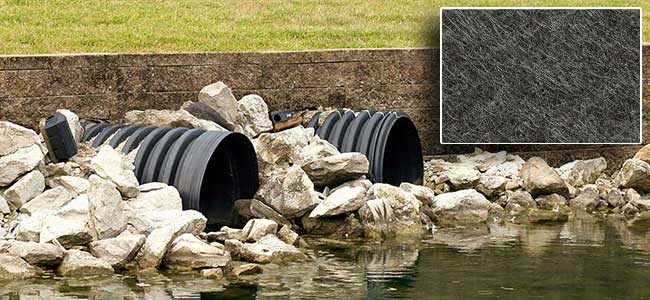

Riprap is used to stabilize areas on construction sites with high erosive capabilities by increasing the surface roughness and slowing down the velocity of runoff. Appropriate areas on sites may include inlets and outlets of storm pipes and culverts, bridges, slope drains, storm drains, and other areas where the concentration of runoff might prevalent. Riprap is effective for protecting and stabilizing slopes, channels, shorelines, and stream banks.

Steel Hill With Rocks

Fabric Used Under Large Rocks

When Riprap  Is Appropriate

In some cases, riprap might be a better choice than other other Geo-Fabric erosion control methods. Even though riprap is not considered visually pleasing, it can be one of the most effective ways to prevent erosion and is beneficial in areas where conditions will prevent established vegetation caused by high velocities that vegetation can not withstand. In comparison to other erosion control methods, riprap is easy to install and maintain. The downside, riprap is more expensive to install due to equipment and handling costs and will not offer some benefits offered by vegetation practices.

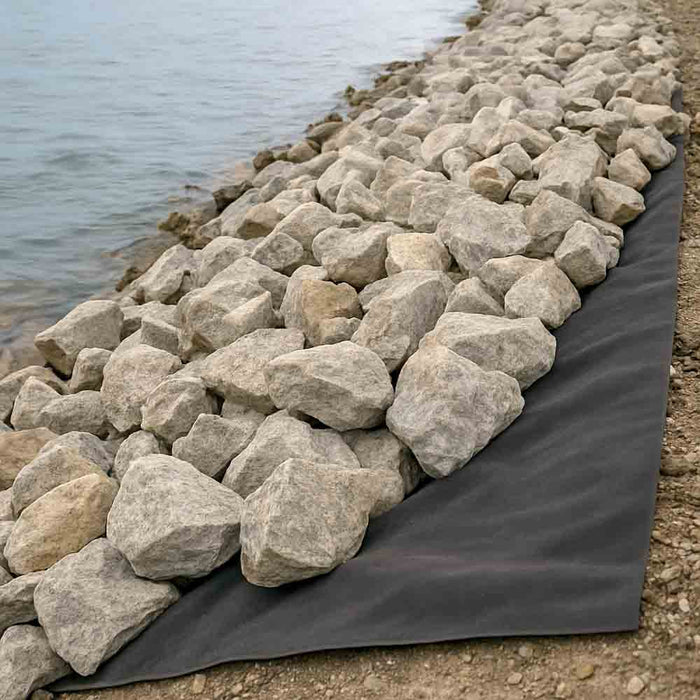

Shoreline riprap used for Erosion Control

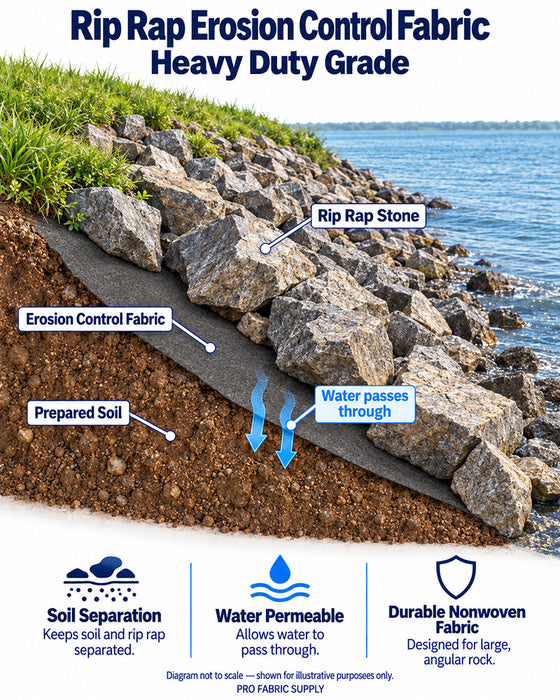

 Geotextile Fabric Used for Rip Rap Application

For Sites

Riprap is a great choice in areas where erosion outweighs the capability of stabilization of erosion control practices including vegetative control and mulching. As mentioned earlier, riprap is useful for shielding channels and ditch banks, lake shorelines, and for sediment trap berms and high-velocity check dams. But, if you take a closer look, it's more expensive than vegetated solutions using turf reinforcement mating or other similar products. Also, it's more difficult to remove after installations. Therefore, contractors should ensure that the post-construction site is designed specifically for riprap before using it during construction. Keep in mind, riprap can be unstable on very steep slopes.

For slopes that are steeper than 2:1, look into other materials instead of riprap for erosion protection including turf reinforcement matter over seed, open-cell concrete mats, or other slope protection geogrid products.

In general, rip rap is an excellent product to prevent erosion in many areas suffering from high-velocity flow.
